Introduction
Structural analysis is the heartbeat of a safe and reliable building. Before a home inspection, gaining insight into this process is paramount. This blog will unveil 12 fundamental aspects in simple terms, empowering you with the knowledge needed for your next home inspection.
What is Structural Analysis?
Structural analysis is the process of a thorough health check up for a building. It deals with how materials, shapes, and forces interact with a building or structure, ensuring the structure stands strong.
This process involves evaluating the integrity of every component – from the walls and floors to the beams and columns. It’s like a meticulous doctor’s examination, where every vital sign of the building is assessed. This ensures that every inch is up to par and ready to bear the weight of years to come.
Different Types of Loads
Loads are the unseen forces acting on a building. Dead loads are the inherent weight of the structure, while live loads includes everything that can move in and out. Understanding these is like knowing the backpack’s weight before a long hike.
Dead loads are akin to your backpack’s base weight – it’s always there, providing stability. Live loads, on the other hand, are like the extra gear you add on top, which can shift and change. A Structural engineer starts Structural analysis carefully considers both, ensuring the building is designed to handle any scenario.
Materials Matter
Just like choosing the right tools for a job, selecting the correct building material is vital. Wood, concrete, steel – each has its strengths and weaknesses. Structural analysis guarantees the chosen material can weather the storms.
It’s like choosing the right material for a suit of armor. A knight wouldn’t go into battle with a fragile shield; similarly, a building must be constructed with the most appropriate material for its intended purpose. Structural analysis ensures that the chosen material will stand strong against all challenges.
Understanding Stress and Strain
Think of stress as the pressure a building feels and strain as its response, like a bridge gracefully swaying with passing cars. Structural analysis ensures materials won’t be stretched beyond their limits.
Consider a rubber band – if stretched too far, it snaps. Similarly, materials have their limits. Structural analysis identifies those thresholds, ensuring that the materials used in the building can withstand the stresses they’ll encounter over time.
Importance of Symmetry
Symmetry isn’t just for aesthetics; it’s the foundation for balanced support. It ensures that the forces acting on a structure are distributed evenly, avoiding weak points. Imagine building a tower out of blocks.
If one side has more blocks than the other, it becomes unstable. Symmetry in structural analysis is like making sure each side of the tower has an equal number of blocks, ensuring that the forces are evenly distributed for stability.
Foundations: The Building’s Anchor
A foundation is like a steadfast anchor. It takes the weight of the entire structure, preventing it from sinking or shifting. It’s the bedrock of a safe building.
Think of it as the roots of a tree. A tree with strong, deep roots can weather any storm. Similarly, a building with a solid foundation is equipped to withstand the test of time, providing stability and support for everything above it.

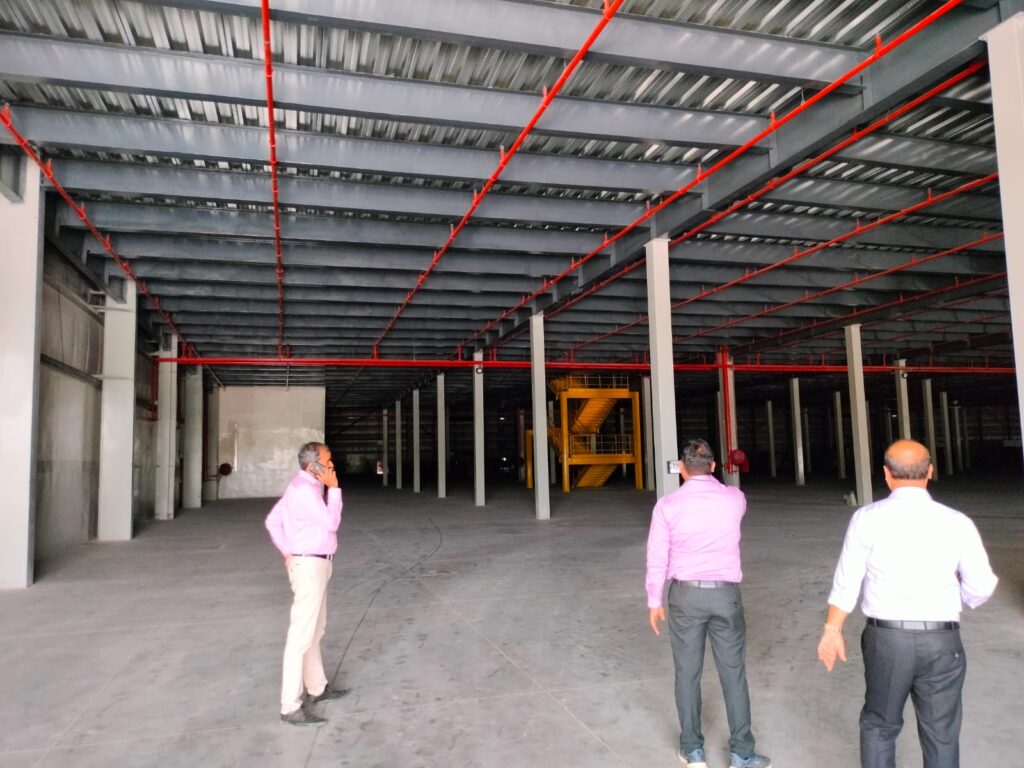

Beams, Columns, and Trusses
These are the building’s skeletal framework. Beams support the weight above, columns handle the vertical load, and trusses distribute forces uniformly, much like a human skeleton ensures we stand tall.
Picture them as the bones of a building. Beams are like the spine, supporting the weight of the floors and roof. Columns are like the legs, taking on the vertical load, and trusses are like the ribs, distributing forces evenly. Each element plays a vital role in holding the structure together.
Bracing for Stability
Bracing elements are akin to our muscles and tendons, offering stability and support. Especially in areas prone to earthquakes or strong winds, these elements keep the structure resilient, like a strong core keeps a body upright.
Think of bracing as the building’s muscles, working together to keep it standing tall. In areas where there might be extra stress, like during a storm or an earthquake, these bracing elements act as the building’s strength, preventing it from swaying or collapsing.
Safety Margins
Much like adding extra time for a journey to account for unforeseen delays, safety margins are built into a structure’s design. They offer a buffer for uncertainties, ensuring that the building stands strong even in unforeseen circumstances.
Safety margins are like a cushion of extra time. Just as you might leave early for a trip in case of traffic, engineers add a little extra strength to the building to account for unexpected challenges. This ensures that the building can handle more than it might face on a day-to-day basis.
The Role of Computer Software
Advanced software acts as a virtual laboratory allowing engineers to conduct experiments on a building’s design. It simulates various scenarios, unveiling how the structure will fare under different conditions, akin to a virtual stress test.
This software is like a crystal ball for engineers. It lets them peek into the future to see how a building will perform under different circumstances. It’s like running a series of tests without actually putting the building at risk, ensuring it’s designed to handle anything that comes its wa.
Codes and Regulations
Much like traffic rules keep us safe on the road, building codes and regulations ensure that structures meet specific safety standards. They serve as the guidelines that govern every aspect of a building’s design and construction.
These codes are like the rulebook for building. Just like traffic rules make sure everyone drives safely, building codes make sure every building is constructed safely. They cover everything from materials to techniques, ensuring that every building is up to standard.
Regular Inspections are Crucial
Even after a thorough structural analysis during construction, regular check-ups are imperative. They act like routine doctor visits, identifying any wear and tear early on, and ensuring the structure remains safe and sound for years to come.
Think of inspections as regular check-ups for your home. Just as you visit the doctor to catch any health issues early, regular inspections catch any potential problems in your building before they become serious. This ensures that your home remains a safe and stable place for you and your family.
Conclusion
These 12 facets of structural analysis shed light on the intricate dance between materials, forces, and design. Armed with this knowledge, you’re better equipped to understand the importance of a home inspection. Safety should always be the cornerstone of any building endeavor.
